Scheduling

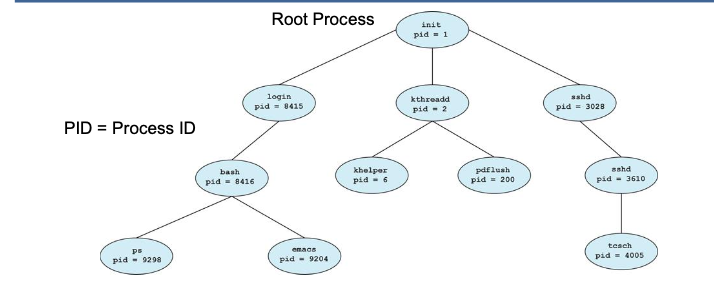

Process Tree

• OS starts with a single root proces
• Root process starts further processes in the OS (e.g. login, sshd, b-shell, etc)
• these processes can create further processes

Process

• A process is a program during execution
• A process runs if it were the only program running
• In fact only one process per CPU is running at any time
• MAkes it seem like all processes are running at the same time
• On multicore systems, processes may be distributed over multiple cores
• Each process has got its own reserved address space
• inter process communication takes special mechanism

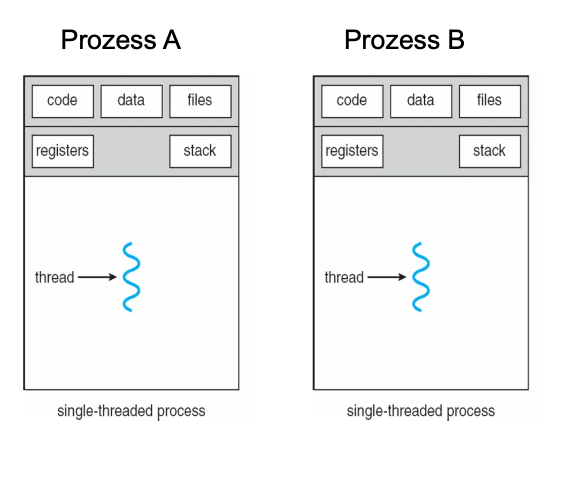

Single threaded process (default)

• Besides processes there are also threads. Threads are the little sisters of processes.
• A process has at least one thread
• A process has several management components (Code segment, executable, read-only, Data, stack, shared memory, PID, priorities, users)
• Stack segment with local variables
• Process have this overhead
• Communication between processes is expensive
• That’s the motivation for several threads within one process

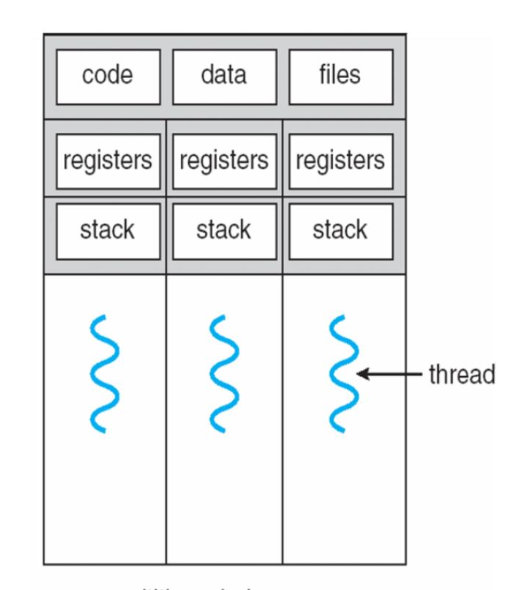

Multithreaded processes

Like processes, threads are an independent sequence of commands that execute a specific function

• A process can have many threads (but has at least one)
• Threads of one process are sharing the memory space of their process
• Each thread however gets its own stack and local variables
• Inter thread communication is simpler than inter process communication since threads are sharing the same memory space
• Unlike in the case of processes, there is however no protection of one threads memory space against manipulation from another thread

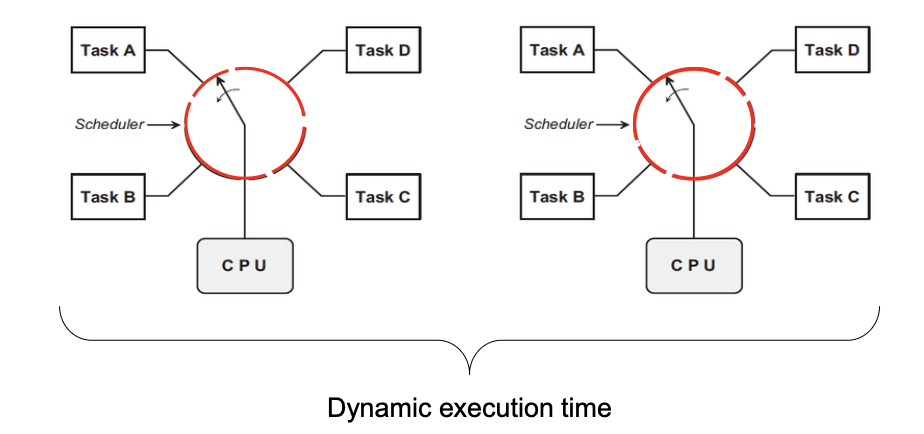

Task Scheduling

• Tasks mostly have variable timeslots and different priorities
• Which task runss next and how long is a decision of the task scheduler

Scheduling Policies

• Preemption means, a task is interrupted in favour of another task

Completely Fair Scheduler (CFS)

• Each process should get a fair share of the processor
• If a process falls out of balance, it gets more time for execution next time
• An "ideal scheduler" distributes the computing power equally among all processes

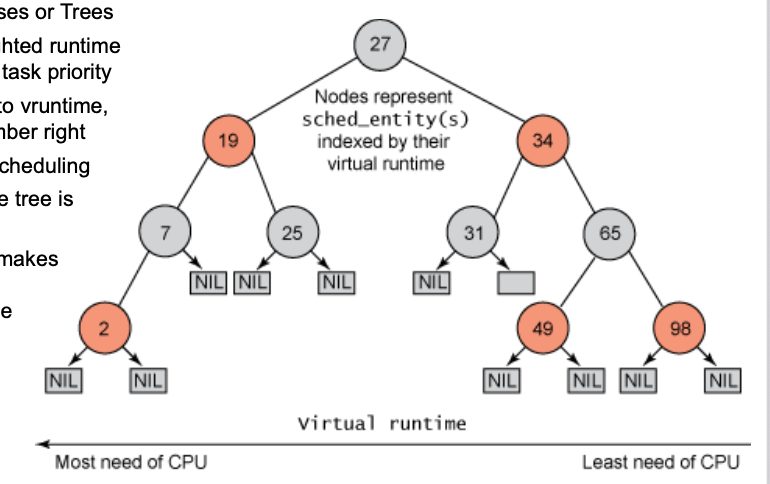

• Circles represent Processes or Trees Numbers circles are weighted runtime (vruntime) – weighted by task priority
• Tree is sorted according to vruntime, low number left, high number right
• Left tasks get priority in scheduling
• After each scheduling, the tree is updated
• The balancing algorithm makes sure all tasks get a fair amount of processing time
• CFS is not suitable for real-time because run time is unpredictable

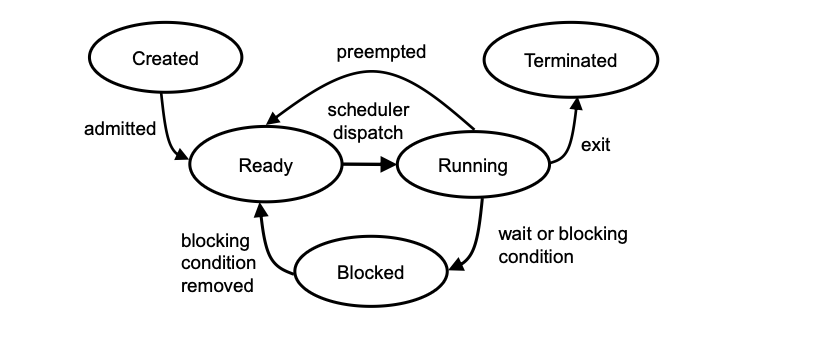

Task States

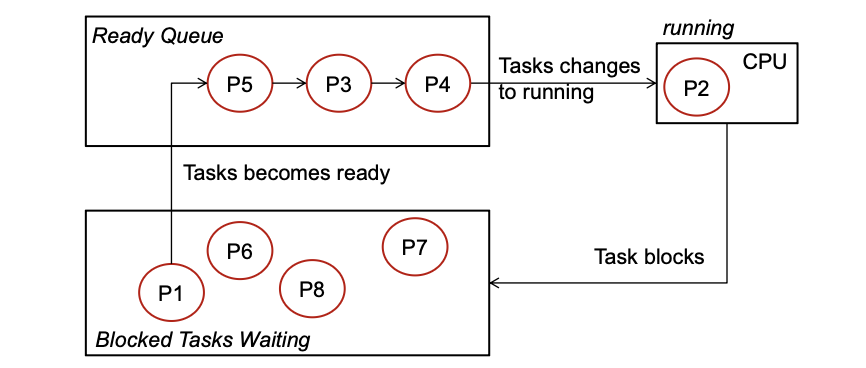

FIFO

All having the same priority

• Tasks in the „Blocked“ container wait until the condition to get active is fulfilled
• The first task in the „Ready Queue“ assumes running state as soon as the currently running task has completed or encounters a block condition
• Running tasks continue until they terminate or encounter a blocking condition

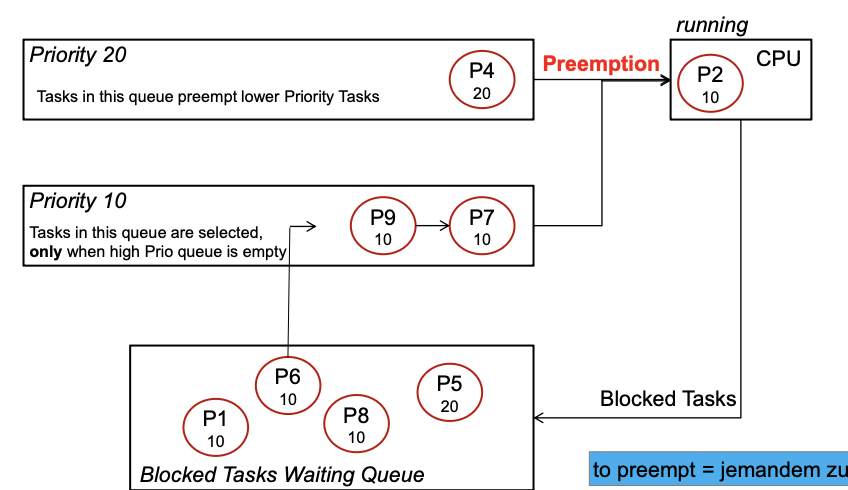

Different priorities (Priority QUEUE)

• Ready queues of different priority
• Higher priority task can be preempting

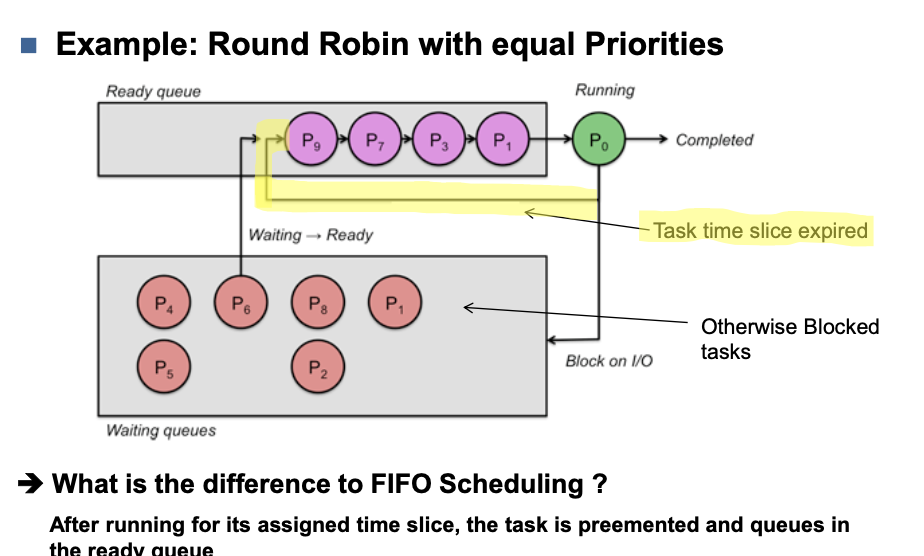

Round Robin (RR)

• Each task has a fixed time slice (sched_rr_timeslice_ms)
• Task runs for a configured timeslice or until it is blocked

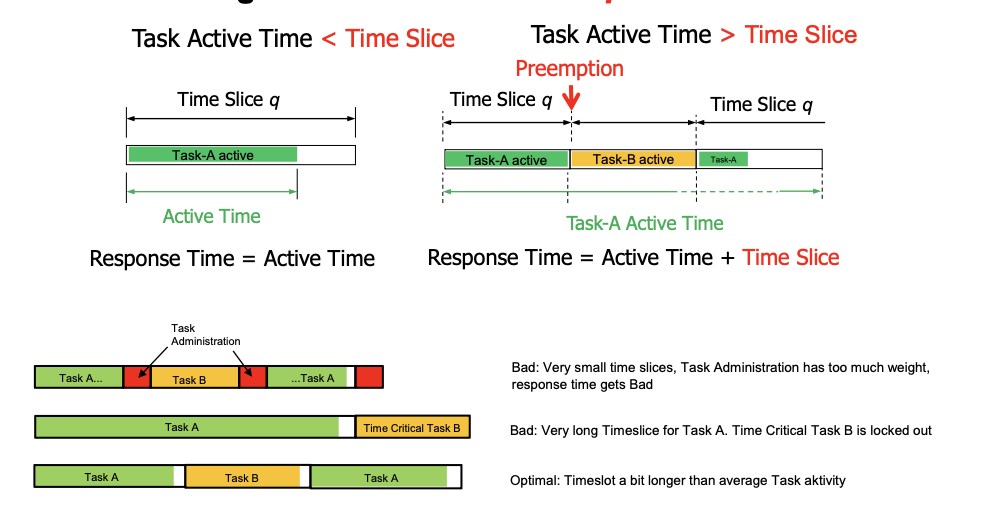

How long should the time slice q be

Equal Priorities

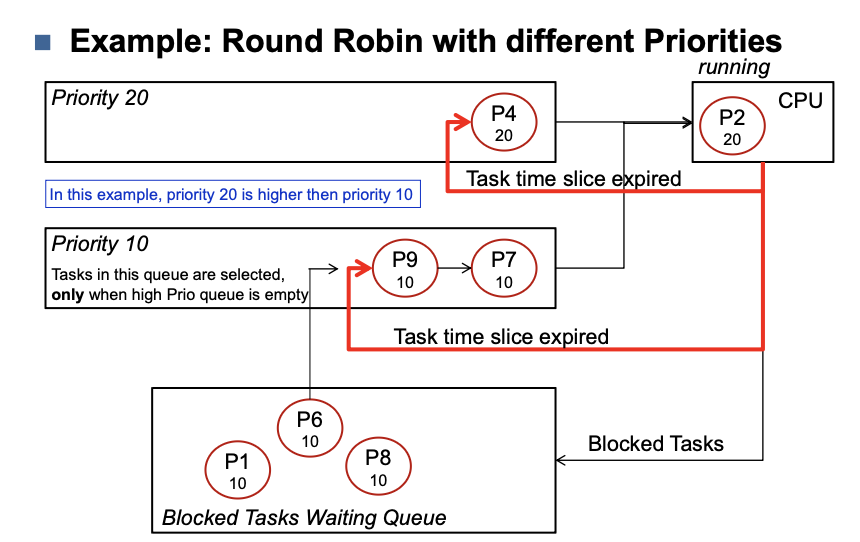

Different priorities

Priority Ranges

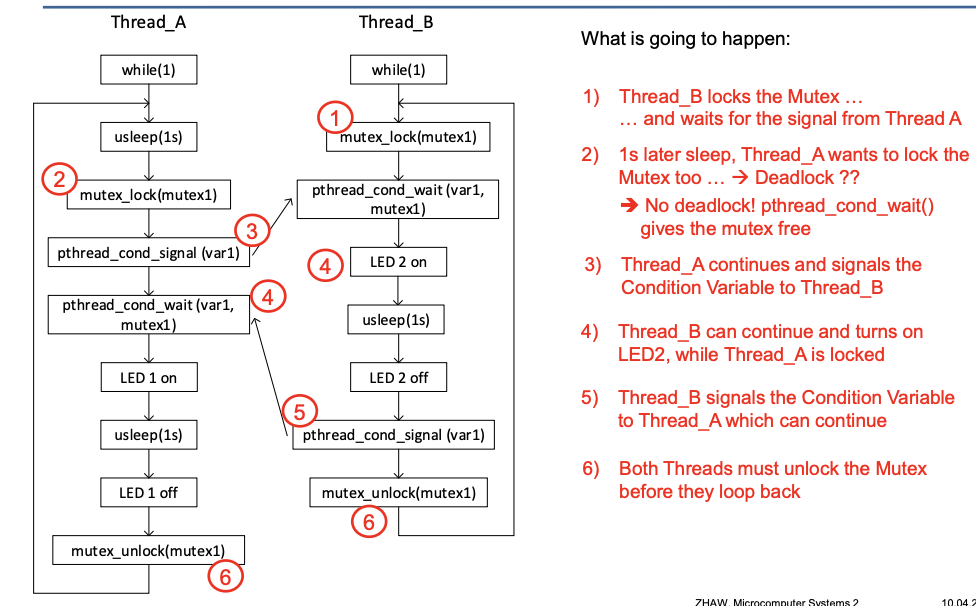

Condition Variables

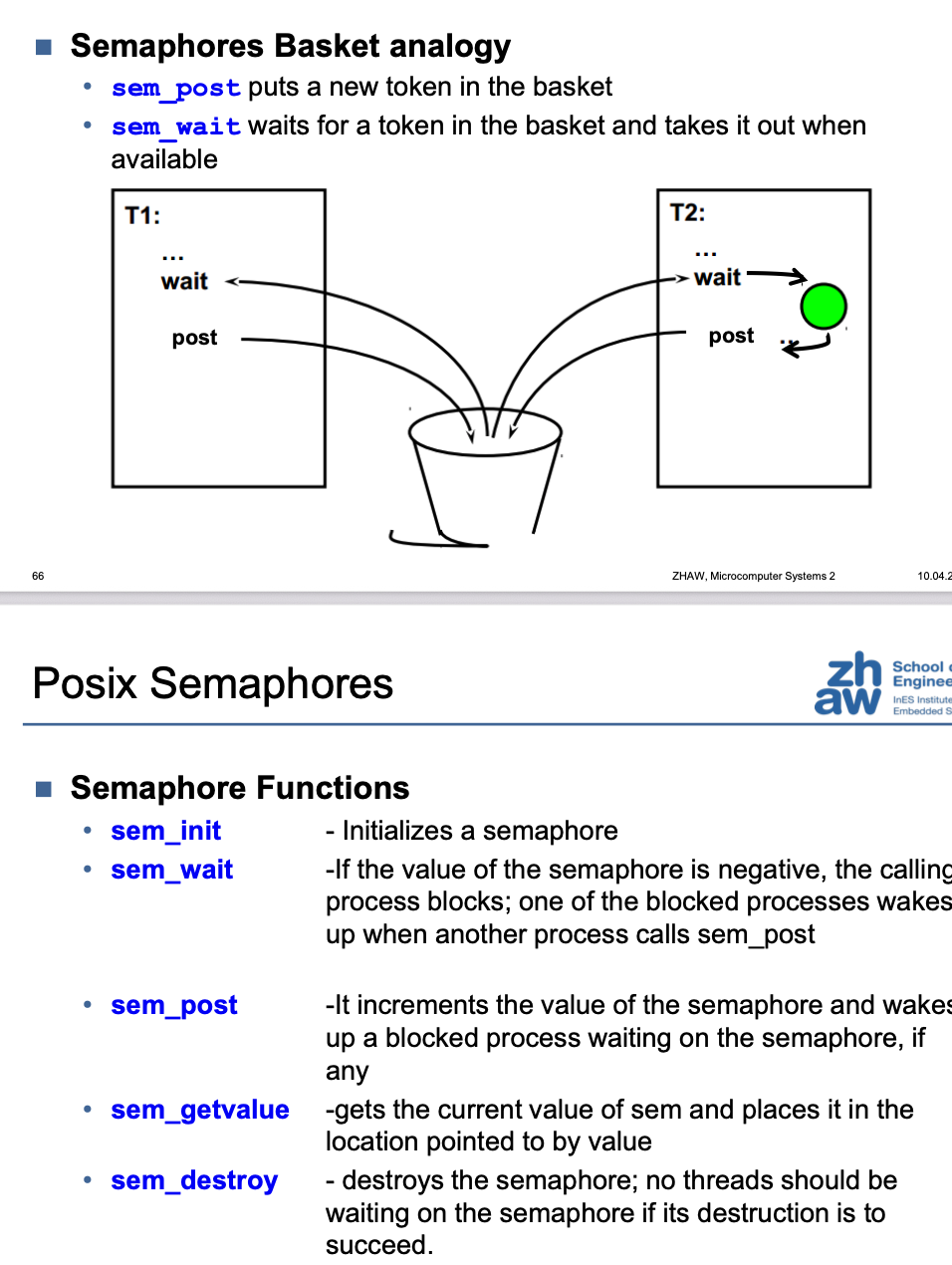

Semaphores

Semaphore Functions
