Kernel Modules

Basics:

  • A programming module with interfaces
  • Communication Medium between application/user and hardware → lives in Kernel Space + used for hardware access with minimal functionality
  • can be hot loaded/unloaded - only possible with root privileges → actual name "Loadable Kernel Module"
  • Gateway to User Space through File Interface with a virtual File (/sys/..)

Types:

  • Device Drivers
  • Filesystem Drivers
  • Network Drivers

LKM Utilities Commands:

# Insert an LKM into the kernel
sudo insmod <module.ko>
# Remove an LKM from the kernel
sudo rmmod <module>
# List currently loaded LKMs
sudo lsmod
# Display information of LKM object file
sudo modinfo <module.ko>
# Insert or remove an LKM, when in /lib/modules
sudo modprobe

Discoverable Hardware

  • PCI/USB devices are discoverable.
  • When connecting a device to a bus, it receives a unique identification used for communication with the CPU.
  • PCI/USB devices tell the system what sort of device they are

Non-discoverable Hardware

  • Simple Interfaces (I2c or SPI) are not discoverable
  • Such hardware has to be explicitly defined → in Device Tree
  • Kernel Modules communicating with the Device Tree are called → Platform Drivers

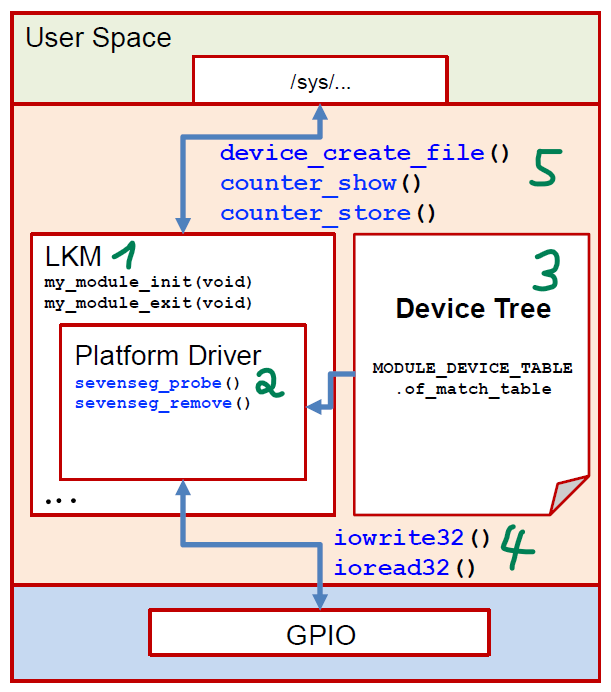

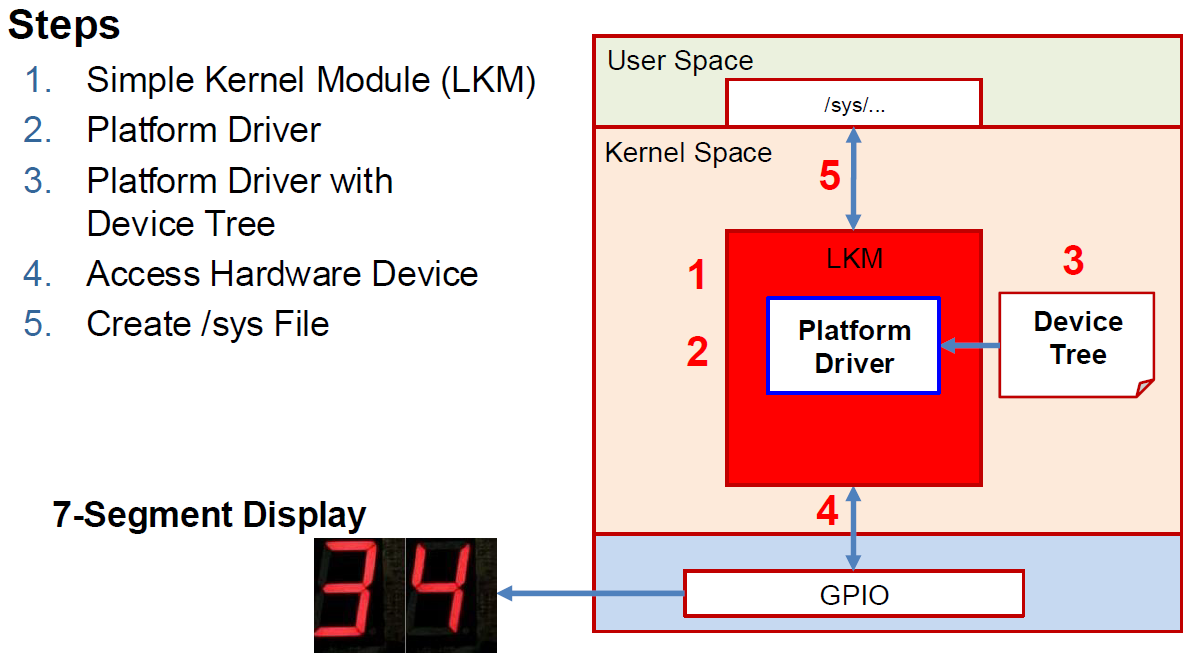

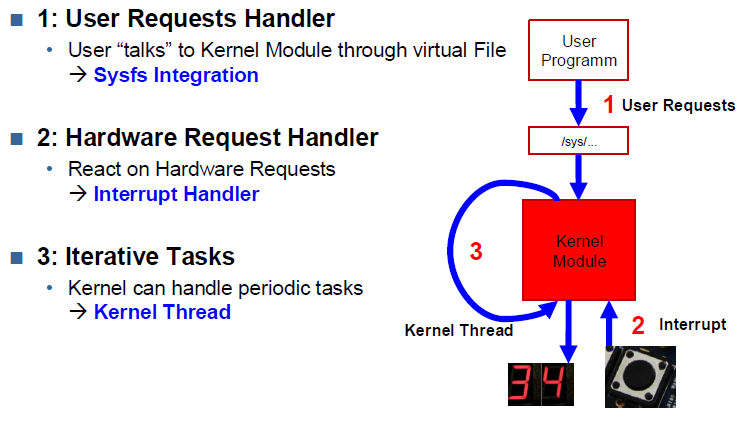

Concept

alt text

alt text

1. Simple LKM

Minimal viable LKM:

#include <linux/kernel.h>
#include <linux/module.h>

// init function
static int __init my_module_init(void) {
    ...
}

// exit function
static void __exit my_module_exit(void) {
    ...
}

/*
* The next calls are mandatory -- they identify the initialization
* and the cleanup function (as above).
*/
module_init(my_module_init);
module_exit(my_module_exit);

/* Kernel module description */
MODULE_LICENSE("GPL");
MODULE_AUTHOR("Vladimir Lenin");
MODULE_DESCRIPTION("A desc.");
MODULE_VERSION("1.0");

C does not have namespace-functionality → naming conflicts/pollition possible
Avoid Kernel namespace pollution: always use static for global vars. to give it file internal linkage

2. Platform Driver

  • Defines a data structure that keeps track of device state.
  • Implements a set of helper functions, interrupt handlers, etc.
  • Defines a probe() method
  • Similarly defines a corresponding remove() method
  • Registersthe device to the Kernel in the __init method
  • Similarly unregisters the device in the __exit method

Probe:

Input: a structure describing the device:

int driver_probe(struct platform_driver *pdev)
  • Initializes device
  • Maps I/O memory
  • Registers Interrupt Handlers
  • Starts Kernel Threads
  • Registers device to proper kernel framework

Remove

Input: a structure describing the device:

int driver_remove(struct platform_driver *pdev)
  • No general responsibilities → open to implementation

Registration

Put everything together with LKM:

  • define probe and remove functions
  • declare them in Platform Driver Definition
  • Un-/Register Platform Driver Definition using __exit and __init methods
#include <linux/platform_device.h>
#include <linux/mod_devicetable.h>

// Example struct device desc.
struct platform_driver {
    int (*probe) (structplatform_device *);
    int (*remove) (structplatform_device *);
    void (*shutdown) (structplatform_device *);
    int( *suspend) (structplatform_device *, pm_message_tstate);
    int (*resume) (structplatform_device *);
    struct device_driverdriver;
    const struct platform_device_id *id_table;
};

// Initialization Platform Driver Definition
static struct platform_driver sevenseg_driver = {
    .driver = {.name = "sevenseg",
               .owner = THIS_MODULE,
               .of_match_table = sevenseg_device_tree_ids, // see point "3. Platform Driver with Device Tree"
    },
    .probe = sevenseg_probe,     // Declare probe function
    .remove = sevenseg_remove    // Declare remove function
};

static int sevenseg_probe(struct platform_device *pdev) {
    ...
}

static int sevenseg_remove(struct platform_device *pdev) {
    ...
}

// registration
static int __init sevenseg_init(void) {
    platform_driver_register(&sevenseg_driver);
    return 0;
}

static void __exit sevenseg_exit(void) {
    platform_driver_unregister(&sevenseg_driver);
}

3. Platform Driver with Device Tree

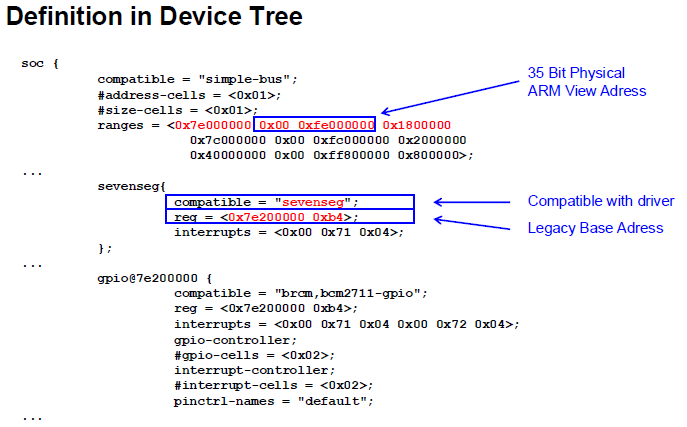

Platform Driver has to be linked somehow to the correct device node in the Device Tree

In Device Tree:

sevenseg {
    compatible = "sevenseg"; //<---- searched string
}

In Platform Driver:

...
static const struct of_device_id sevenseg_device_tree_ids[] = {
    {
        .compatible = "sevenseg",
    },
    {}};

MODULE_DEVICE_TABLE(of, sevenseg_device_tree_ids);

static struct platform_driver sevenseg_driver = {
    .driver = {.name = "sevenseg",
               .owner = THIS_MODULE,
               .of_match_table = sevenseg_device_tree_ids, // <----- look here
    },
    .probe = sevenseg_probe,     // Declare probe function
    .remove = sevenseg_remove    // Declare remove function
};
....

4. Access Hardware Device

  • Use global data structure for information exchange between methods
  • Use prob function to allocate memory and register struct
...

/*
 * Type definitions and global variables for kernel module
 */
typedef struct sevenseg_platform_data {
    struct device* dev;
    int counter;
    int mode;
    void __iomem* base_addr;
    int irq;
    struct task_struct* kthread_sevenseg;
} sevenseg_platform_data;

...

static int sevenseg_probe(struct platform_device *pdev) {
    struct sevenseg_platform_data* pdata;
    ...
    pdata = devm_kzalloc(&pdev->dev, sizeof(pdata), GFP_KERNEL); // allocate memory
    platform_set_drvdata(pdev, pdata); // register bzw. set struct as "driver data"
    ...
}

alt Text

How to get resource and virtual address from Device Tree, implement in prob function:

static int sevenseg_probe(struct platform_device* pdev) {
    struct sevenseg_platform_data* pdata;
    struct resource* res;
    ...
    res = platform_get_resource(pdev, IORESOURCE_MEM, 0); // <-------- get resource from Device Tree
    if(res == NULL) {
        pr_err("platform_get_resource() failed! \n");
        return -1;
    }
    pr_info("Info: 35Bit ARM Address: 0x%x \n", res->start);

    pdata->base_addr = devm_ioremap_resource(&pdev->dev, res); // <-------- get virtual address
    if(IS_ERR(pdata->base_addr)) {
        pr_err("Error: devm_ioremap_resource() failed! \n");
        return PTR_ERR(pdata->base_addr);
    }
    pr_info("Info: Virtual Address: 0x%x \n", pdata->base_addr);

    ...

    return 0;
}

Write to Peripheral: void iowrite{$X$}(u{$X$} value, void* addr);
Read from Peripheral: void ioread{$X$}(void* addr);

With {$X$} = 8 or 16 or 32

Example usage in device setup:

static int sevenseg_probe(struct platform_device* pdev) {
    struct sevenseg_platform_data* pdata;
    struct resource* res;
    ...
    // Configure different GPIOs
    // Setup keys as GPIO_IN
    init_gpio(pdata, keys[1], GPIO_IN);              	 // <----- uses iowrite32 & ioread32
    set_trigger_gpio(pdata, keys[1], GPIO_EDGE_FALLING); // <----- uses iowrite32 & ioread32

    init_gpio(pdata, keys[0], GPIO_IN);              	 // <----- uses iowrite32 & ioread32
    set_trigger_gpio(pdata, keys[0], GPIO_EDGE_FALLING); // <----- uses iowrite32 & ioread32

    // Setup the two sevenseg's to GPIO_OUT
    for(i = 0; i < 8; i++) {
        init_gpio(pdata, sevensegs[0][i], GPIO_OUT); // <----- uses iowrite32 & ioread32
        init_gpio(pdata, sevensegs[1][i], GPIO_OUT); // <----- uses iowrite32 & ioread32
    }
    // Initialize the sevenseg with the first number
    sevenseg_write(pdata, pdata->counter);			 // <----- uses iowrite32
    dev_info(&pdev->dev, "Info: Finished initializing sevenseg \n");

    ...

    return 0;
}

5. Create /sys File

Platform Dreiver needs to:

  1. provide store and showfunctions
  2. "register" their function pointers
  3. create virtual file in /sys that will be writen to/read from → in probe and remove functions

alt tesxt

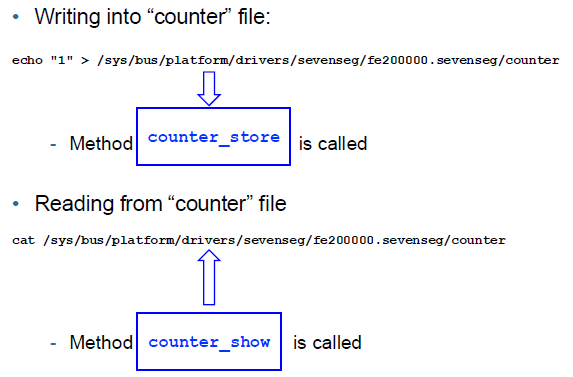

  1. and 2.
// user writes to file "counter"
static ssize_t counter_store(struct device* dev,
                             struct device_attribute* attr,
                             const char* buf,
                             size_t count) {
    ...
}

// user reads from file "counter"
static ssize_t counter_show(struct device* dev,
                            struct device_attribute* attr,
                            char* buf) {
    ...
}

// Macro to define counter and show/store Function
DEVICE_ATTR(counter, 0644, counter_show, counter_store);

Location of „File“: /sys/bus/platform/drivers/sevenseg/fe200000.sevenseg/counter

static int sevenseg_probe(struct platform_device* pdev) {
    struct sevenseg_platform_data* pdata;
    struct resource* res;
    ...
    // Create File "counter"
    ret = device_create_file(&pdev->dev, &dev_attr_counter);    //<----- create
    if(ret != 0) {
        pr_err("device_create_file() failed with: %d() \n", ret);
        return -1;
    }
    ...

    return 0;
}

static int sevenseg_remove(struct platform_device* pdev) {
    struct sevenseg_platform_data* pdata = platform_get_drvdata(pdev);

    device_remove_file(&pdev->dev, &dev_attr_counter); 		  //<----- remove
    kthread_stop(pdata->kthread_sevenseg);

    return 0;
}

alt text

Interrupts

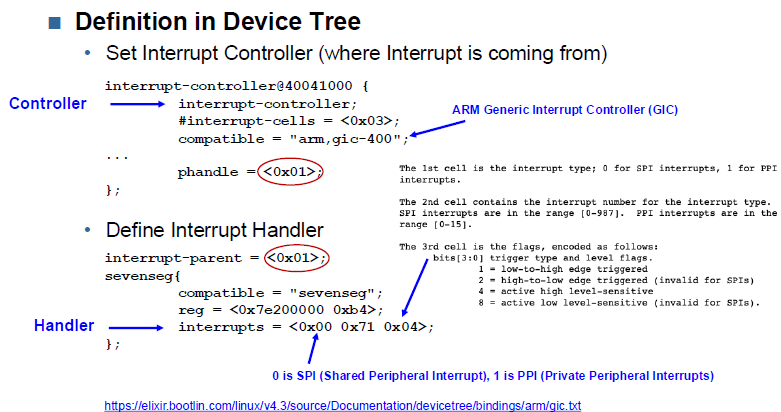

Device Tree Interrupt Definition:

Interupt Controler:											Interupt Handling Device
                                <------Device Tree------>
HW that "initiates" interrupt								Hardware that "reacts" to interupt → i.e. where ISR is implemented

alt text

Definition in Device Tree:

alt text alt text

Code Example

static irqreturn_t irq_handler(int this_irq, void* data) {
    ... // interrupt logic here
    // clear Interrupt
    iowrite32(0x1 << keys[1], pdata->base_addr + GPEDSX_OFFSET(keys[1]));
    iowrite32(0x1 << keys[0], pdata->base_addr + GPEDSX_OFFSET(keys[0]));
                                             //  ^ GPIO Pin Event Detect Status Register
    return IRQ_HANDLED;
}

static int sevenseg_probe(struct platform_device* pdev) {
    ...

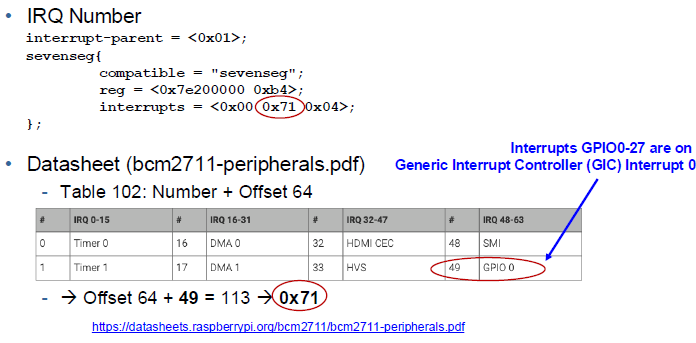

    pdata->irq = irq_of_parse_and_map(pdata->dev->of_node, 0);       // <------ Parse Device Tree for Interrupt
    if(pdata->irq != 0) {
        if(devm_request_irq(pdata->dev, pdata->irq, irq_handler,
                            IRQF_TRIGGER_NONE, "sevenseg", pdata)) { // <------ Register Interrupt Handler
            pr_err("Error: Could not request IRQ\n");
            return -ENODEV;
        }
    }

    ...

    return 0;
}

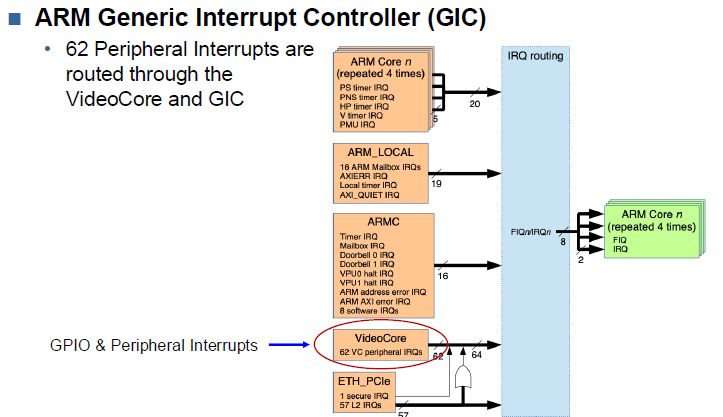

Interrupt Handler using GIC

static void set_trigger_gpio(struct sevenseg_platform_data *pdata,
                            int gpio, int mode) {
    switch(mode) {
        case GPIO_EDGE_FALLING:
            offset = GPFENX_OFFSET(gpio);
        break;

    }
    ...
    rdval  = ioread32(pdata->base_addr + offset);
    rdval |= (0x1 << gpio);
    iowrite32(rdval, pdata->base_addr + offset);
}

static int sevenseg_probe(struct platform_device *pdev) {
    ....
    // Initialize GPIO and set trigger
    init_gpio(pdata, keys[1], GPIO_IN);
    set_trigger_gpio(pdata, keys[1], GPIO_EDGE_FALLING);

    return 0;
}

Threads

kthread_run(threadfn, data, namefmt);

Create a new thread and run it

  • Threadfn: Function name to run
  • Data: Pointer to function arguments, given when started
  • Namefmt: The name of the thread (visible in ps)
  • Returns a task_struct
kthread_should_stop();						// Check, if thread needs to stop
kthread_stop(struct task_struct *thread);   // stops thread

Example from out sevenseg implementation:

static int thread_fn(void* data) {
    struct sevenseg_platform_data* pdata = (struct sevenseg_platform_data*)data;
    int i = 0;

    pr_info("Info: Thread entered\n");
    while(!kthread_should_stop()) {
        if(pdata->mode == COUNTING) {
            pdata->counter = pdata->counter == 0 ? 99 : --pdata->counter;
        }

        sevenseg_write(pdata, pdata->counter);
        msleep(500);
    }
    return 0;
}

static int sevenseg_probe(struct platform_device *pdev) {
    ....
    pdata->kthread_sevenseg = kthread_run(thread_fn, pdata, "kthread_7seg");

    return 0;
}

static int sevenseg_remove(struct platform_device* pdev) {
    ....
    kthread_stop(pdata->kthread_sevenseg);

    return 0;
}
